Small Bearing Rear Disc Brake Kit with 5 x 5 Wheels by LEED Brakes

Additional Images

Rear Disc Brake Conversion Kit - Small Bearing 8 in & 9 in Rear Axle 5 x 5 Wheel Bolt Pattern - MaxGrip XDS Rotors

Small Bearing Axle, 5 X 5 Wheel Bolt Pattern

SKU: RC0015X

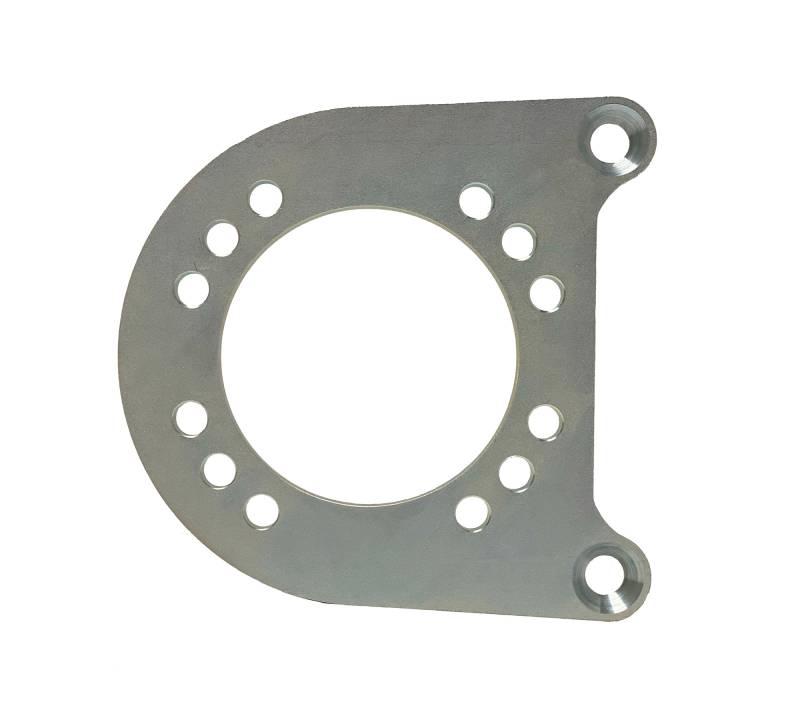

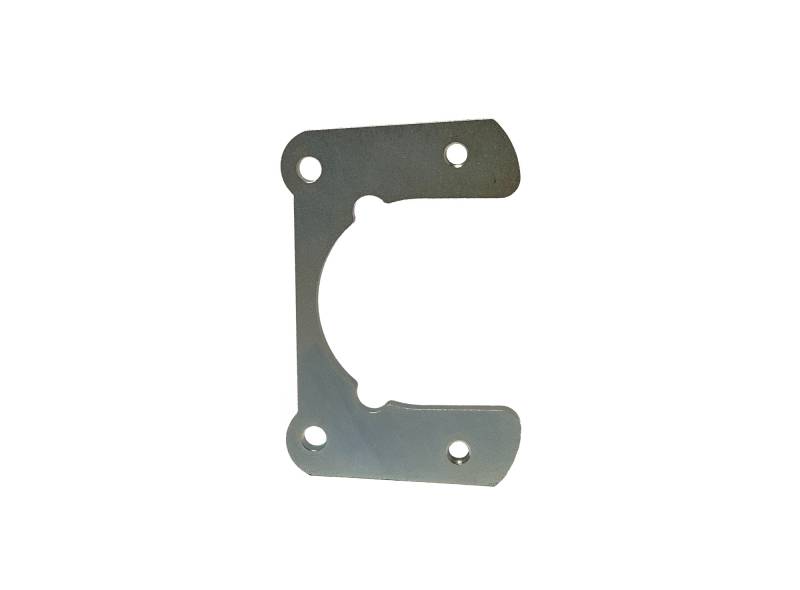

Upgrade your Ford 8-inch or 9-inch Small Bearing rear axle with a LEED Brakes rear disc brake conversion kit. This direct bolt-on kit makes it easy to convert from rear drum brakes to high-performance rear disc brakes without complicated modifications. The two-piece mounting bracket allows you to position the brake caliper in three different locations, providing additional clearance for many aftermarket suspension and frame combinations.

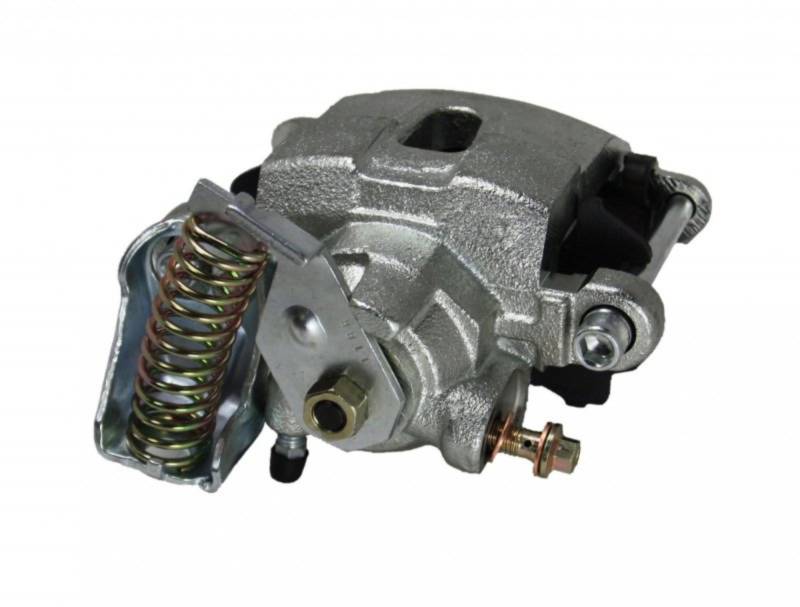

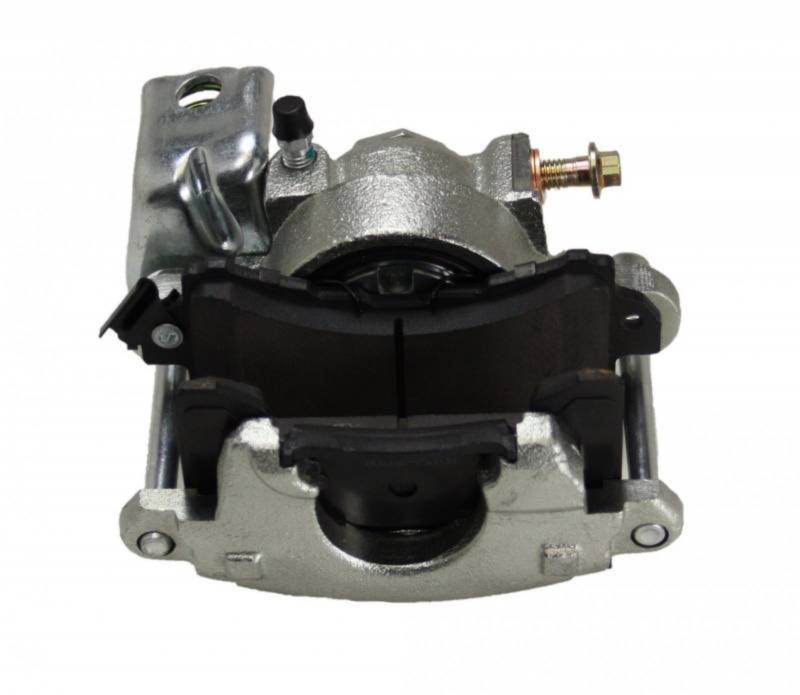

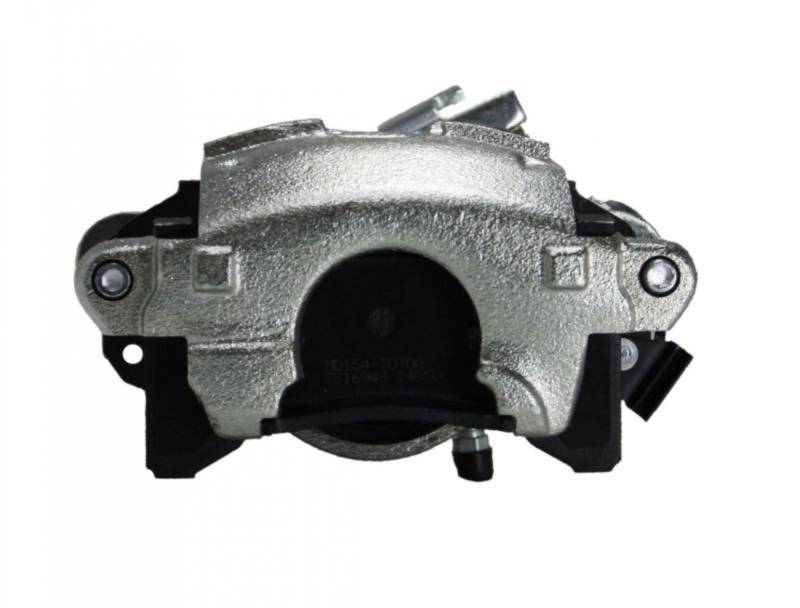

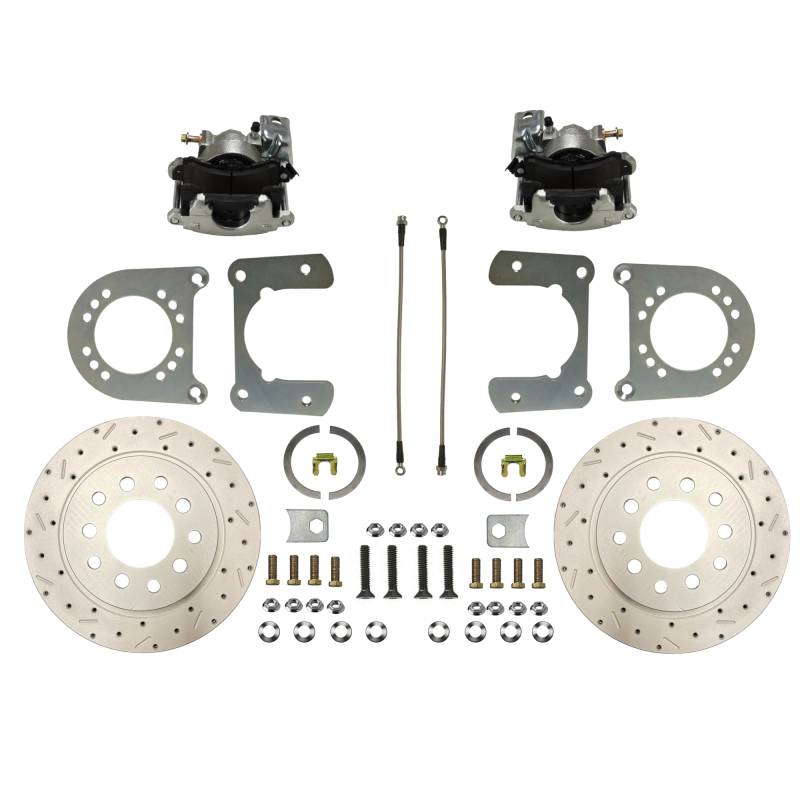

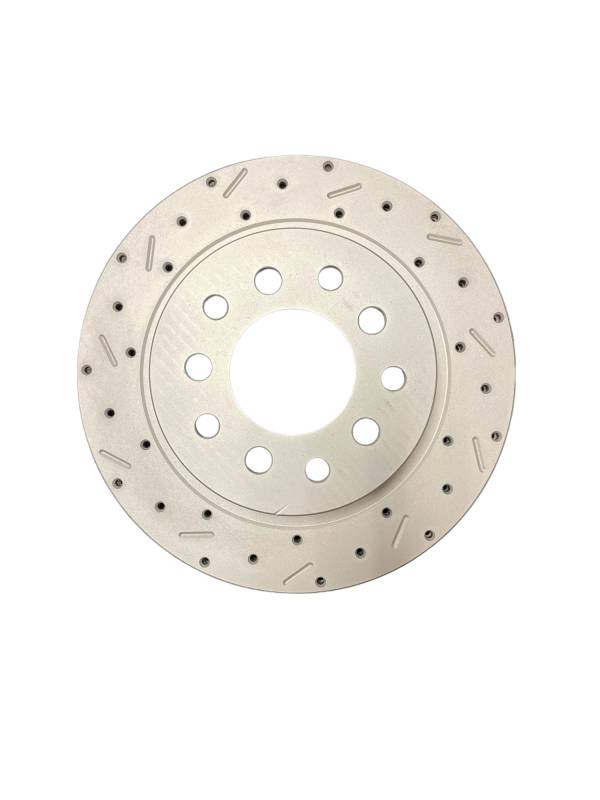

This complete rear disc brake conversion kit includes 11.5-inch vented MaxGrip XDS rotors with a 5 x 5 bolt pattern, heavy-duty 54mm single-piston calipers with an integrated parking brake, and premium semi-metallic brake pads for dependable stopping power. The calipers and brackets feature a corrosion-resistant bright zinc-plated finish for long-lasting durability and a clean appearance. Designed to fit most 15-inch factory and aftermarket wheels, this kit delivers improved braking performance, straightforward installation, and a professional finish.

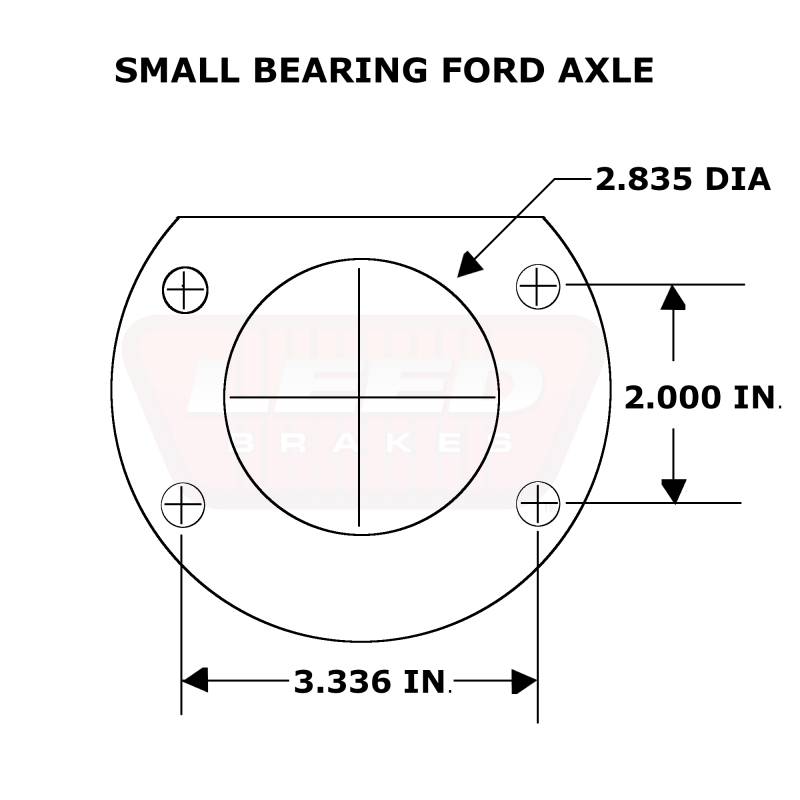

Important: Verify your axle housing flange dimensions before purchasing to ensure proper fitment. See Photo #2 for measurement details.

Pricing: $989.99

Description
Details
Shipping
Documents
Reviews

Description

Upgrade your custom rear axle to rear disc brakes with ease! The LEED Brakes Small Bearing 8 in & 9 in rear disc brake upgrade kit is a direct bolt on to your custom rear axle. Our 2 piece mounting design gives you the flexibility to orientate your brake caliper in 3 positions. This helps with additional clearance of most aftermarket suspension and frame modifications.

In this rear disc brake conversion kit we provide a 11.5 in. vented MaxGrip XDS brake rotor with a 5 x 5 bolt pattern and heavy duty 54mm single piston caliper with built-in parking brake and semi-metallic brake pad for optimum performance. The brake calipers and brackets have a bright zinc plated finish for corrosion protection and a clean look. This kit is designed to fit into most 15" wheels as well as most aftermarket 15" and larger wheels. A clean look, great performance and easy installation!

Rear Disc Brake Conversion Kit for Small Bearing 8 in & 9 in Rear Axle 5 x 5 Wheel Bolt Pattern Highlights

Position: Rear
Rotor Included: Yes
Rotor Style: MaxGrip XDS
Rotor Construction: Cast Iron
Rotor Diameter: 11.5 in
Rotor Thickness: .790 in
Rotor Bolt Pattern: 5 x 5 in
Caliper Included: Yes
Caliper Piston Quantity: 1
Caliper Material: Cast Iron
Caliper Finish: Zinc Plated
Parking Brake Included: Yes
Minimum Recommended Wheel Diameter (in): 15x7
Notes: Check axle housing flange dimensions to ensure proper fitment before purchasing - See Photo #2
