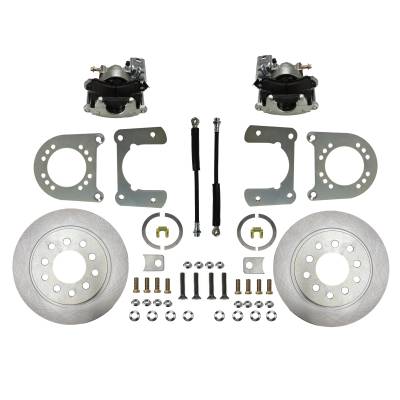

Rear Disc Brake Conversion Kit - Ford F100 & Bronco - Small Bearing Rear Axle

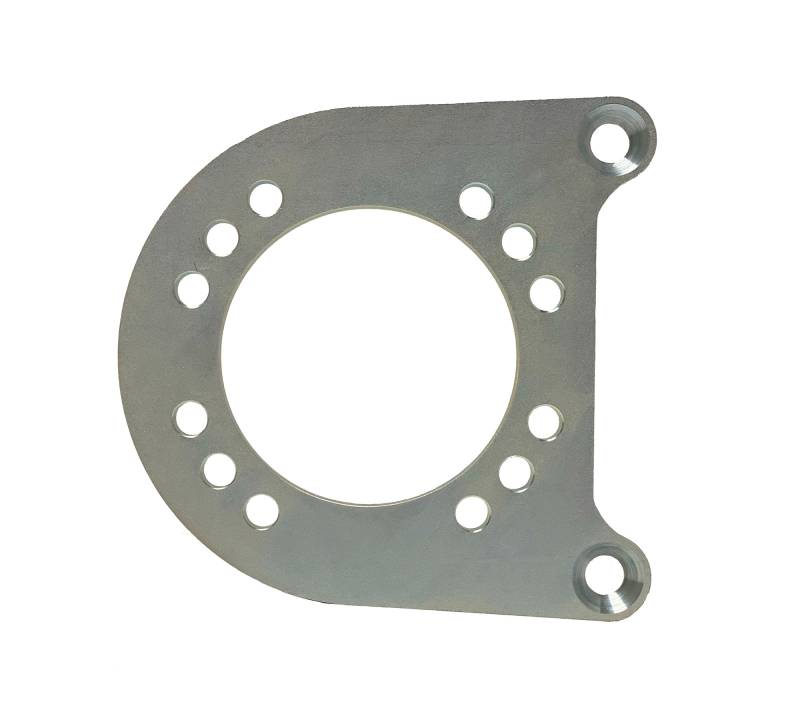

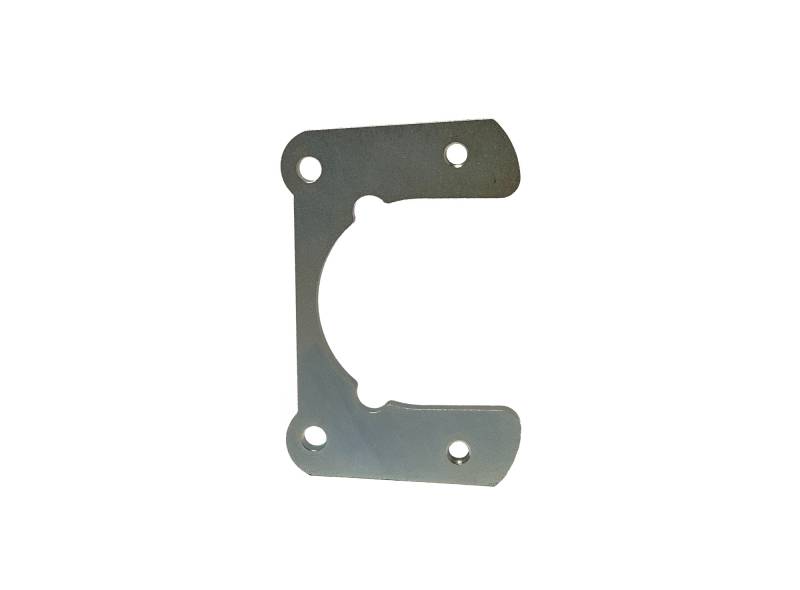

Upgrade your F100, F150 or Ford Bronco truck to rear disc brakes with ease! The LEED Brakes rear disc brake kit for your 1957-78 F100 Truck is a direct bolt on to the factory rear axle. Our 2 piece mounting design gives you the flexibility to orientate your brake caliper in 3 positions. This helps with additional clearance of most aftermarket suspension and frame modifications.

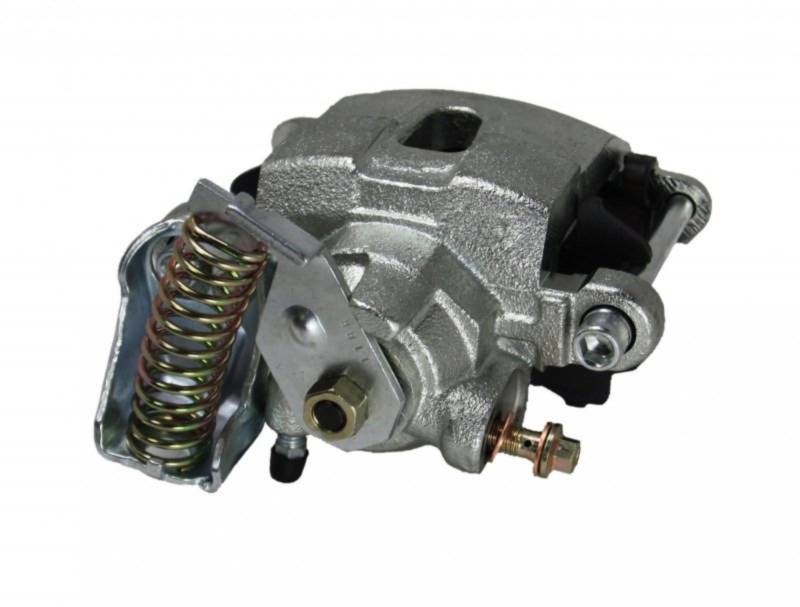

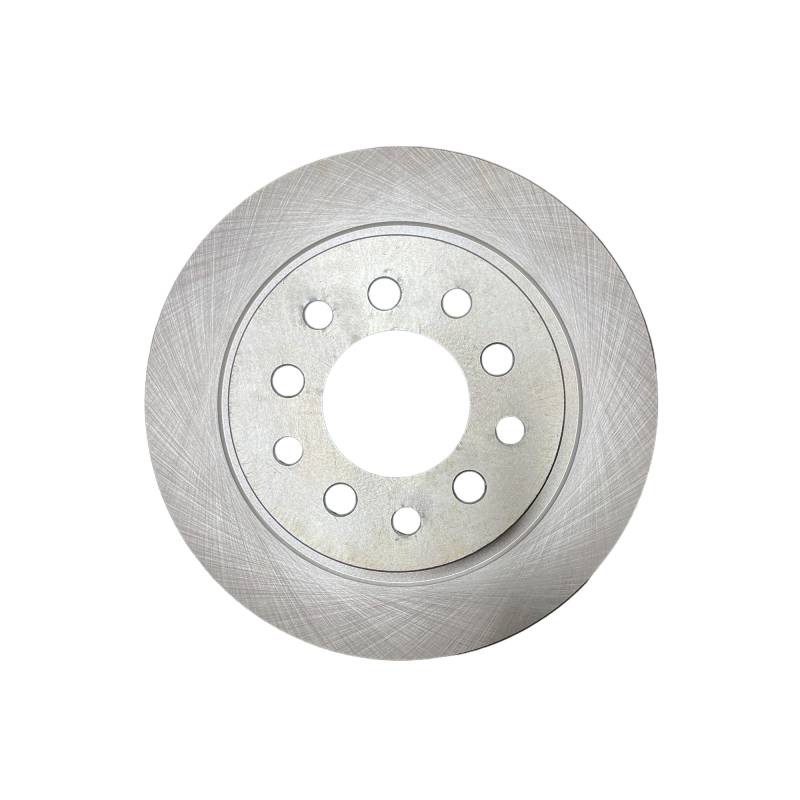

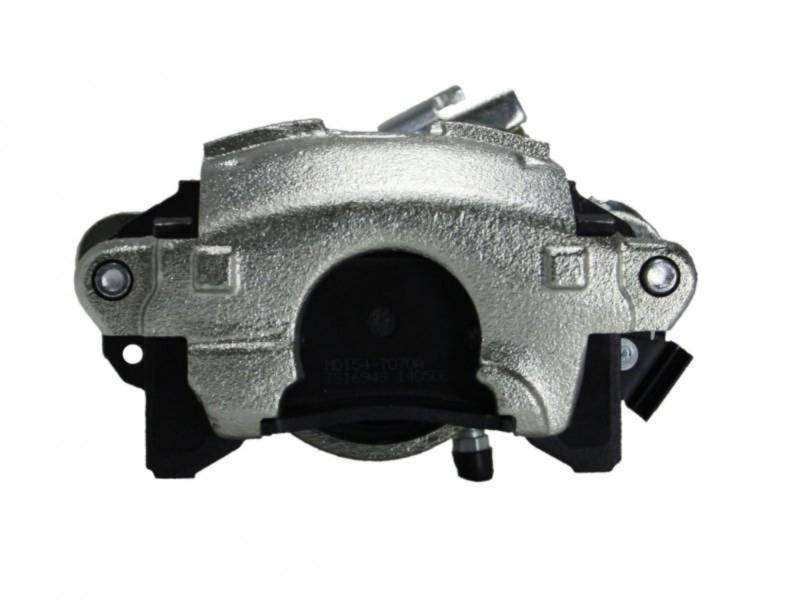

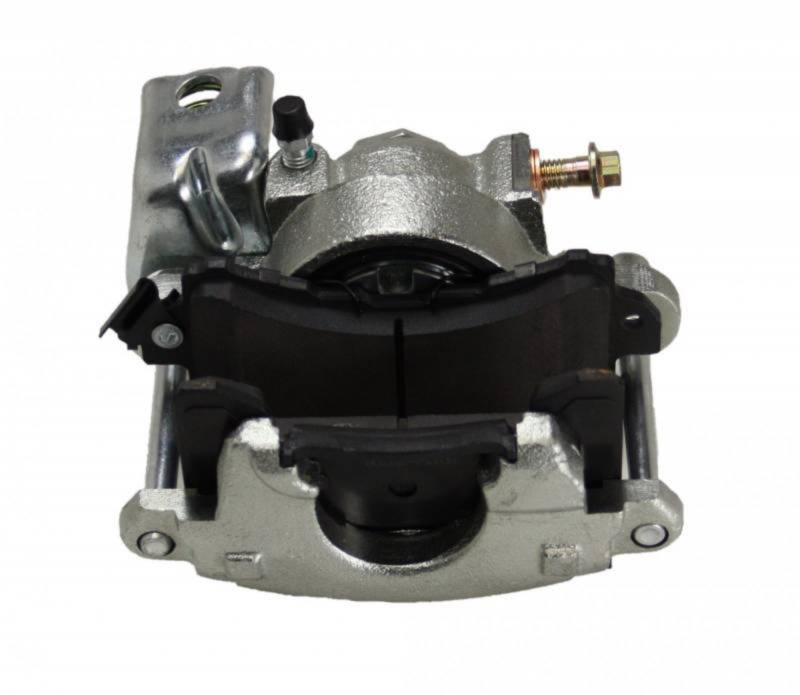

In this kit we provide a 11.650 in. vented brake rotor and heavy duty 54mm single piston caliper with built-in parking brake and semi-metallic brake pad for optimum performance. The brake calipers and brackets have a bright zinc plated finish for corrosion protection and a clean look. This kit is designed to fit into the most 15" wheels as well as most aftermarket 15" and larger wheels. A clean look, great performance and easy installation!

Rear Disc Brake Conversion Kit for 1957-1978 Ford F100 Truck & 1980-1986 Ford F150 & 1966-1986 Ford Bronco, 5 Lug Highlights

Position: Rear
Rotor Included: Yes
Rotor Style: Standard
Rotor Construction: Cast Iron
Rotor Diameter: 11.650 in
Rotor Thickness: 1.032in
Rotor Bolt Pattern: 5 x 5.50 in
Caliper Included: Yes
Caliper Piston Quantity: 1
Caliper Material: Cast Iron
Caliper Finish: Zinc Plated
Parking Brake Included: Yes
Minimum Recommended Wheel Diameter (in): 15x7

1980-86 Bronco with 9 inch Axle - Check axle flange diagram - See Photo 2

1980-86 Ford F150 with 9 inch Axle - Check axle flange diagram - See Photo 2

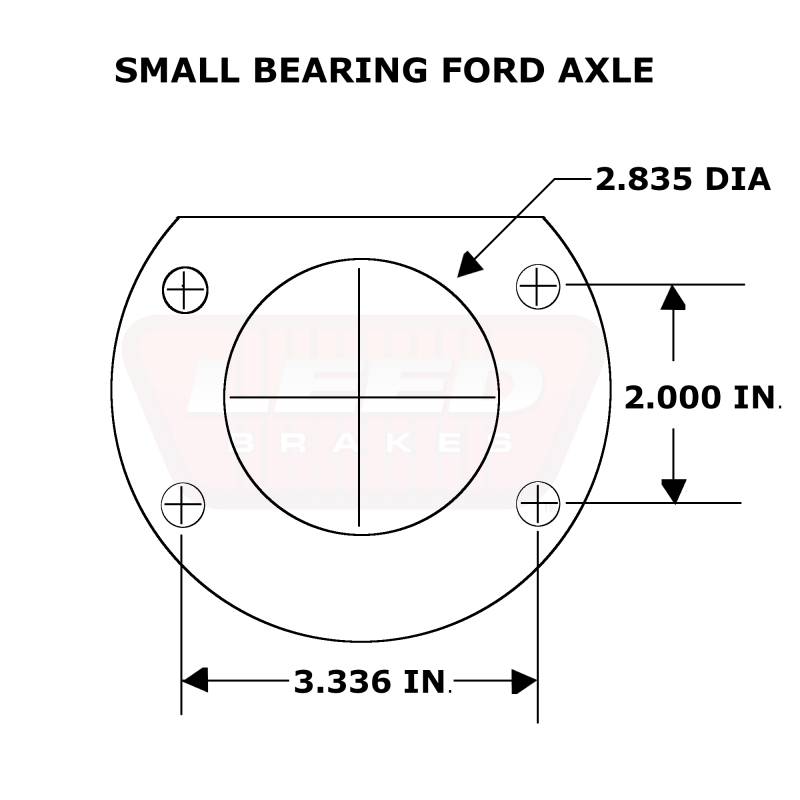

Notes: Check axle housing flange dimensions to ensure proper fitment before purchasing - See Photo #2
