MaxGrip XDS Cross Drilled & Slotted Brake Rotor & Pad Kit - GM 2WD Truck Light Duty

Upgrade Your Ride with Uncompromising Braking Power!

Introducing our MaxGrip XDS Brake Rotor & Brake Pad Kit, engineered to deliver a boost in stopping performance and reliability for your vehicle. This comprehensive kit provides everything you need for a seamless installation of high-performance, MaxGrip XDS Brake Rotors & Pads.

Designed specifically for GM C10, C1500, 2WD light duty trucks, the LEED Brakes MaxGrip XDS front brake rotor and pad kit features precision-engineered cross drilled and slotted brake rotors paired with performance semi-metallic pads for improved heat dissipation, reduced brake fade, and dependable stopping performance for daily driving, towing, and restoration builds.

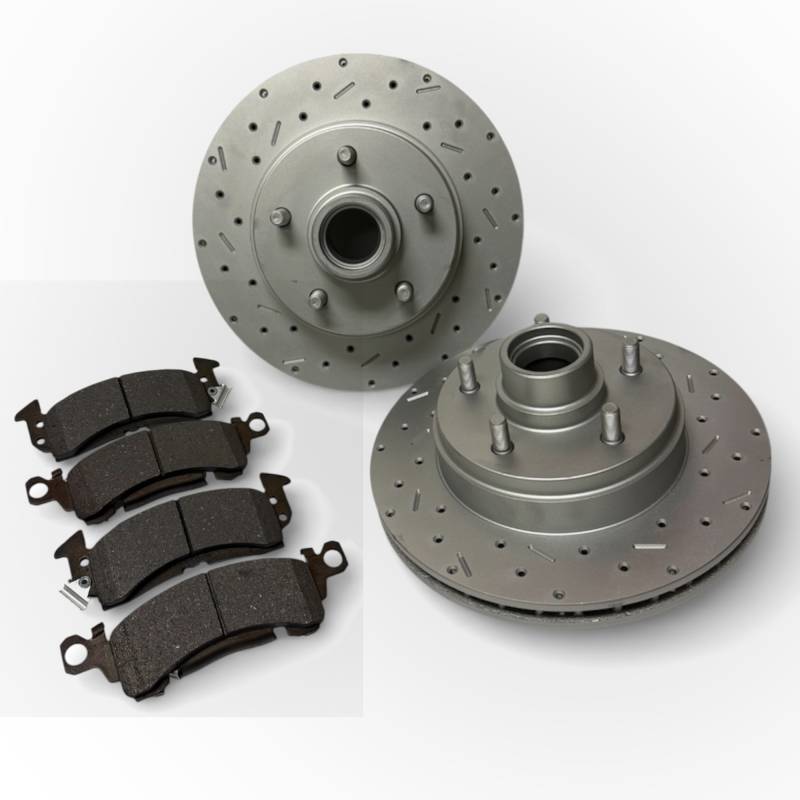

What's Included:

• LEED Brakes' MaxGrip XDS Cross-Drilled & Slotted Rotors: Precision-engineered for optimal heat dissipation, reduced brake fade, and aggressive styling.

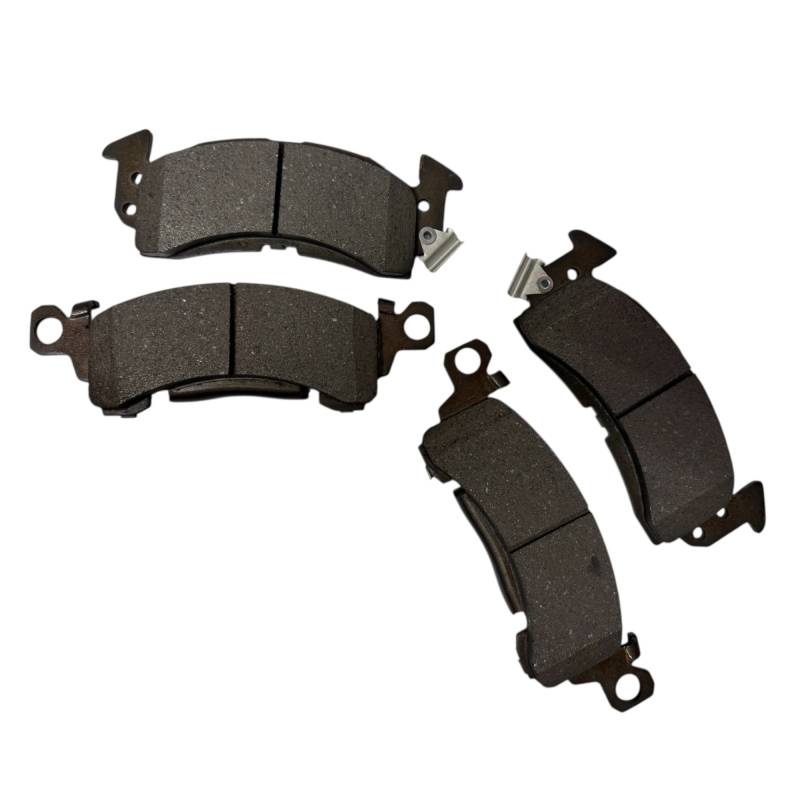

• Performance Semi-Metallic Brake Pads: Providing excellent stopping power and consistent braking feel.

Experience Effortless Installation:

This kit is designed for a direct bolt-on installation, meaning no cutting, drilling, or welding is required. You can upgrade your braking system with confidence and ease.

Quality You Can Trust:

Rest assured, all components included in this rotor & pad kit are brand new, high-quality, and precision-machined products, ensuring exceptional performance and long-term durability.

Elevate your driving experience with the superior stopping power and quality of our MaxGrip XDS Rotor & Pad kit!

The Science of Brake Fade: Understanding Outgassing When you apply the brakes, the friction between the pad and the rotor generates intense heat. Under extreme conditions, surface temperatures can exceed the stable operating limit of the pad's binding resins. At this point, the resins begin to burn and turn into a gas.

This gas becomes trapped in the microscopic space between the pad and the rotor. Under pressure, it acts like a thin cushion of air, effectively "lifting" the pad away from the rotor. This is a specific type of brake fade: just like a car hydroplaning on water, the brake pad "gas-planes" on a layer of hot vapor.

The MaxGrip XDS Solution LEED Brakes MaxGrip XDS Cross-Drilled & Slotted rotors are engineered to eliminate this cushion.

• Precision Drilling: Our holes provide a direct escape route for gas to vent into the internal cooling vanes.
• Directional Slotting: Machined channels act like "windshield wipers," clearing gas and dust toward the edges of the wheel to maintain a clean contact patch.

Unlike generic performance rotors, the LEED Brakes drilling pattern is specifically engineered to avoid the structural ribs between the rotor halves. This maintains maximum structural integrity and eliminates the micro-cracking often found in inferior drilled rotors.

Superior Protection with Magni Coating To ensure long-term durability, MaxGrip XDS rotors are finished with Magni Coating—a high-performance, chrome-free metallic film.

Consistent Friction: Magni’s frictional output matches a bare rotor, allowing it to be applied to all braking surfaces without sacrificing performance.

Extreme Resistance: Rated for temperatures up to 825°F and tested for 400 hours of salt spray, this coating provides a robust shield against under-vehicle corrosion and the elements.

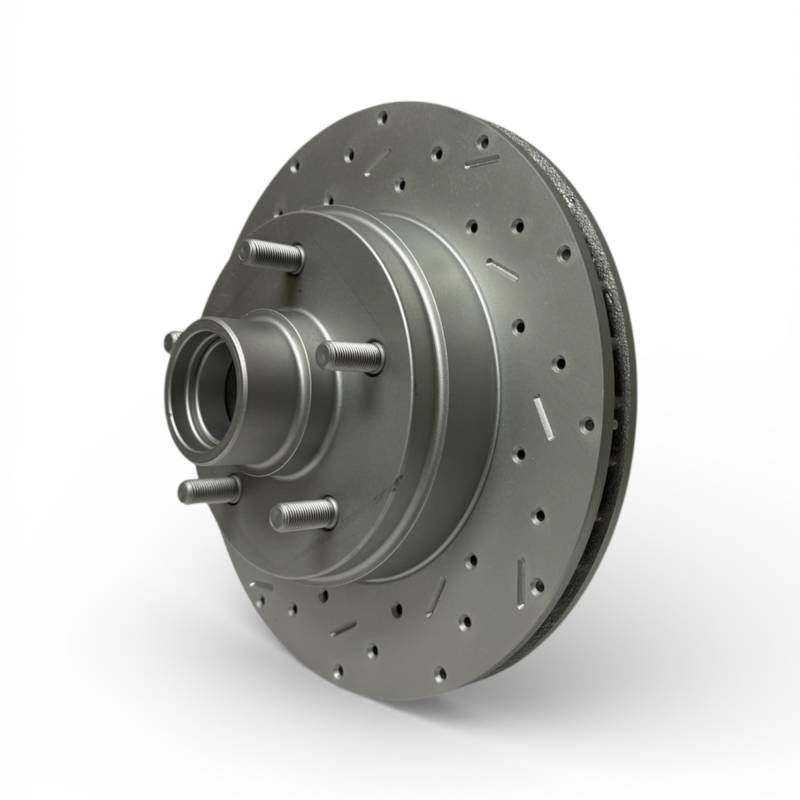

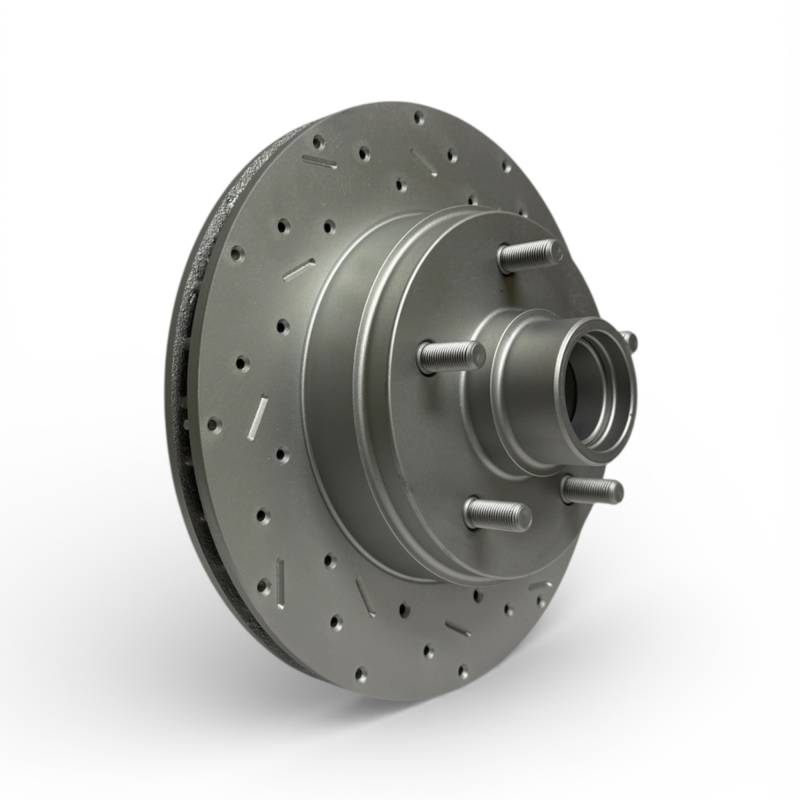

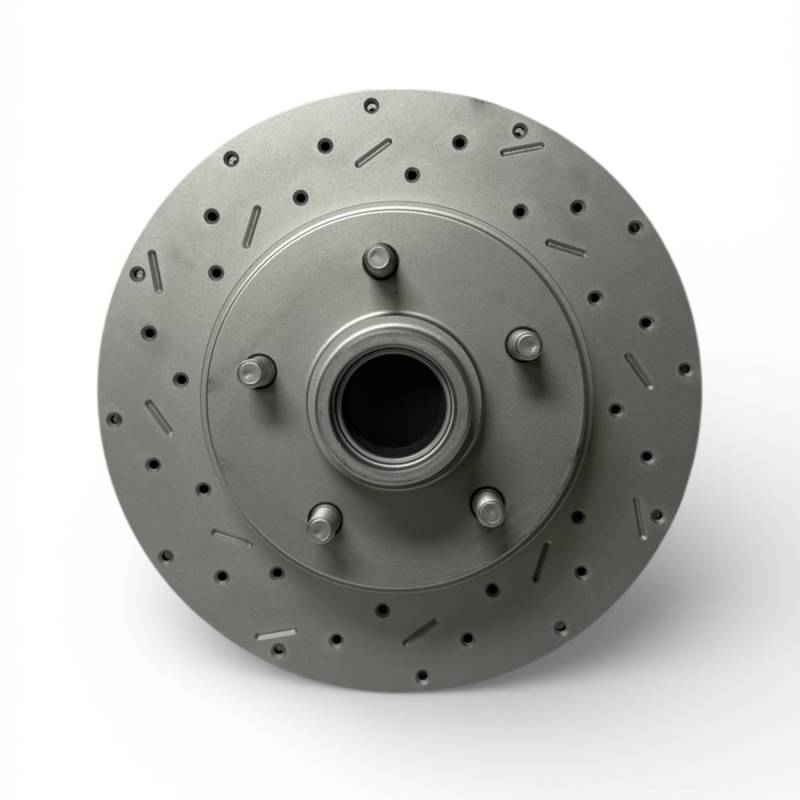

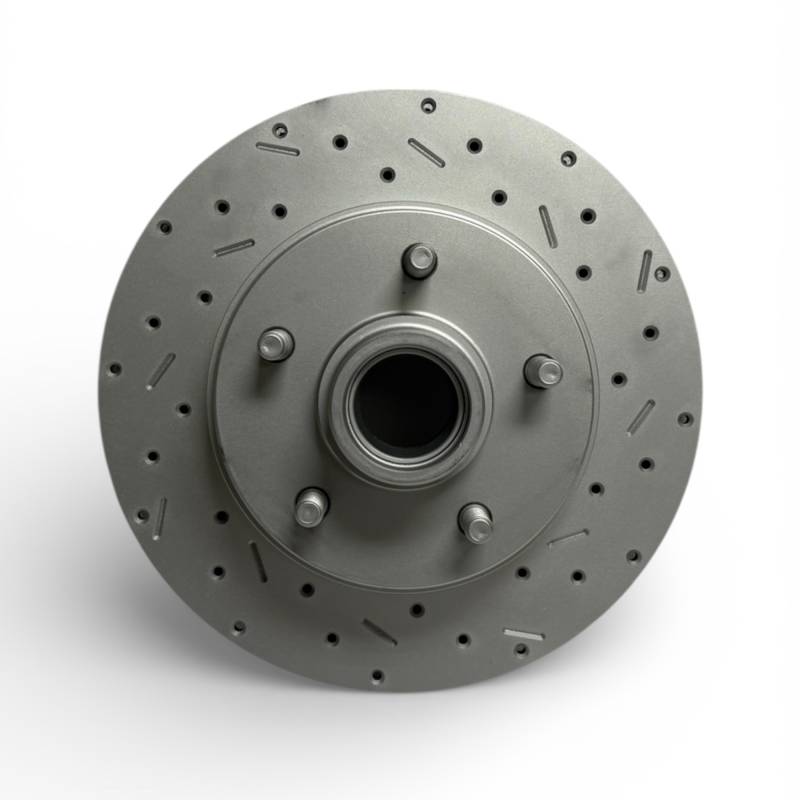

LEED Brakes' MaxGrip XDS Cross-Drilled & Slotted Rotors:

MaxGrip XDS Rotor & Pad Kit Key Features:

• Position: Front
• Rotor Included: Yes
• Rotor Style: Cross Drilled and Slotted
• Rotor Construction: Cast Iron
• Rotor Diameter: 11.87 inches
• Rotor Thickness: 1.28 inch
• Rotor Finish: Magni Zinc Coating
• Stud/Lug Hole Circle Diameter: 5
• Stud/Lug Hole Quantity: 5
• Overall Height: 4.65 in
• Outside Diameter: 11.85 in
• Discard Thickness: .960 in
• Brake Pads Included: Yes
• Brake Pad Material: Semi-Metallic
• Quantity: Kit

Direct Fit for GM C10, C1500 Series Light Duty Trucks:

This bolt-on front disc brake upgrade is compatible with the following GM 2WD Trucks (check applications tab for more specifics):

• 1981-1986 Chevrolet C10
• 1981-1986 GMC C1500
• 1978 Buick Riviera (not a typo)

Why Choose LEED Brakes?

• High-Quality Components: Precision-machined parts ensure a factory fit.
• Better Braking Performance: Cross-drilled and slotted rotors optimize heat dissipation and pad contact.
• Direct Bolt-On Installation: No cutting, drilling, or welding required.

Upgrade your GM 1/2-ton truck with LEED Brakes' MaxGrip XDS Brake Rotors & Pads for enhanced stopping power and a factory-like fit.
